Venetian bullet traps

Venetian bullet traps

The Venetian ball trap is recommended for small (short) shooting ranges as it does not require more than one meter depth for its installation.

According to the version of the Venetian bullet trap model, it can withstand ammunition from handguns only or both handgun and shoulder weapon ammunition, including 5.56 and 7.62 caliber, except for perforating, incendiary and tracer bullets.

Working of a Venetian bullet trap

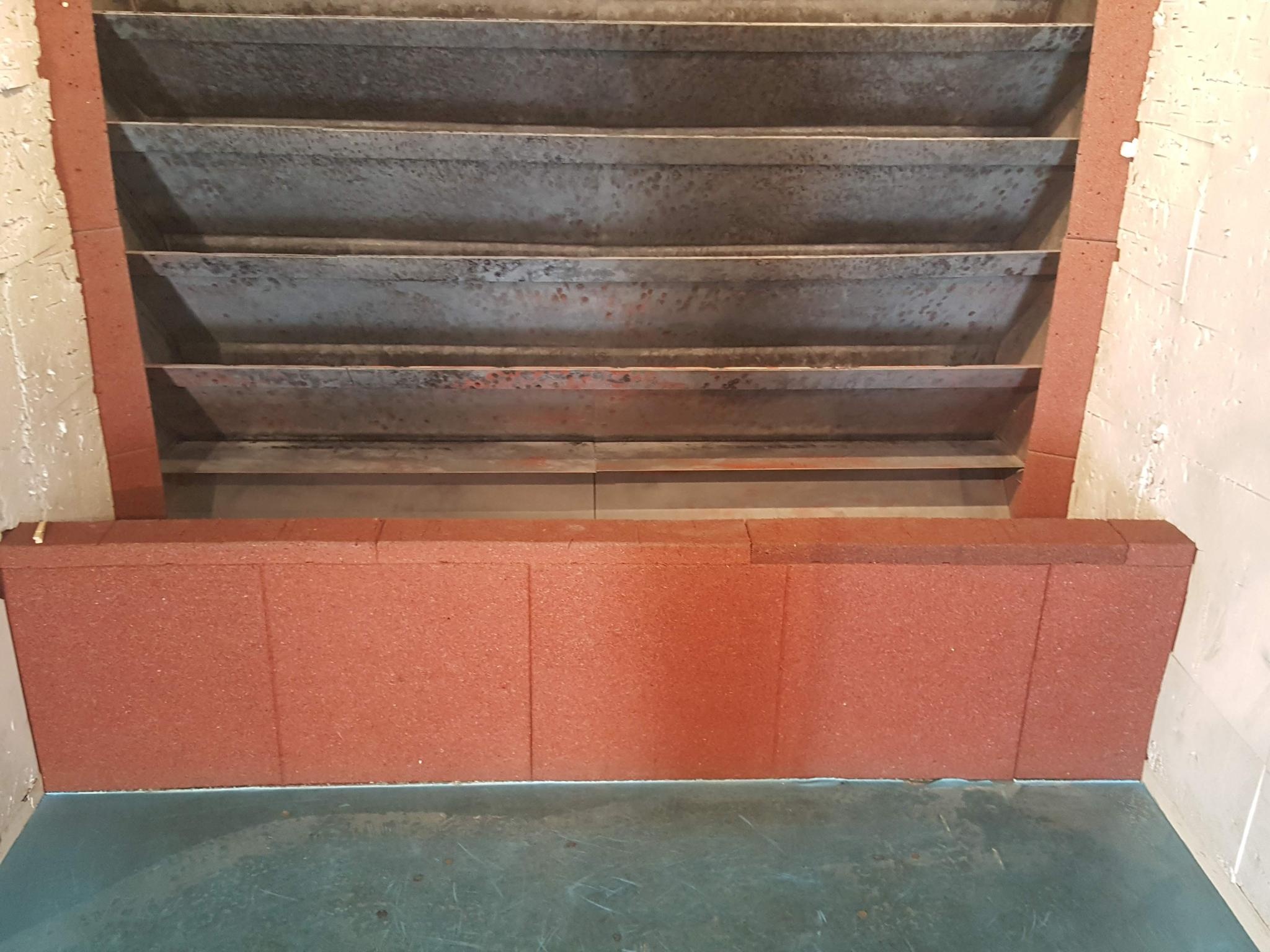

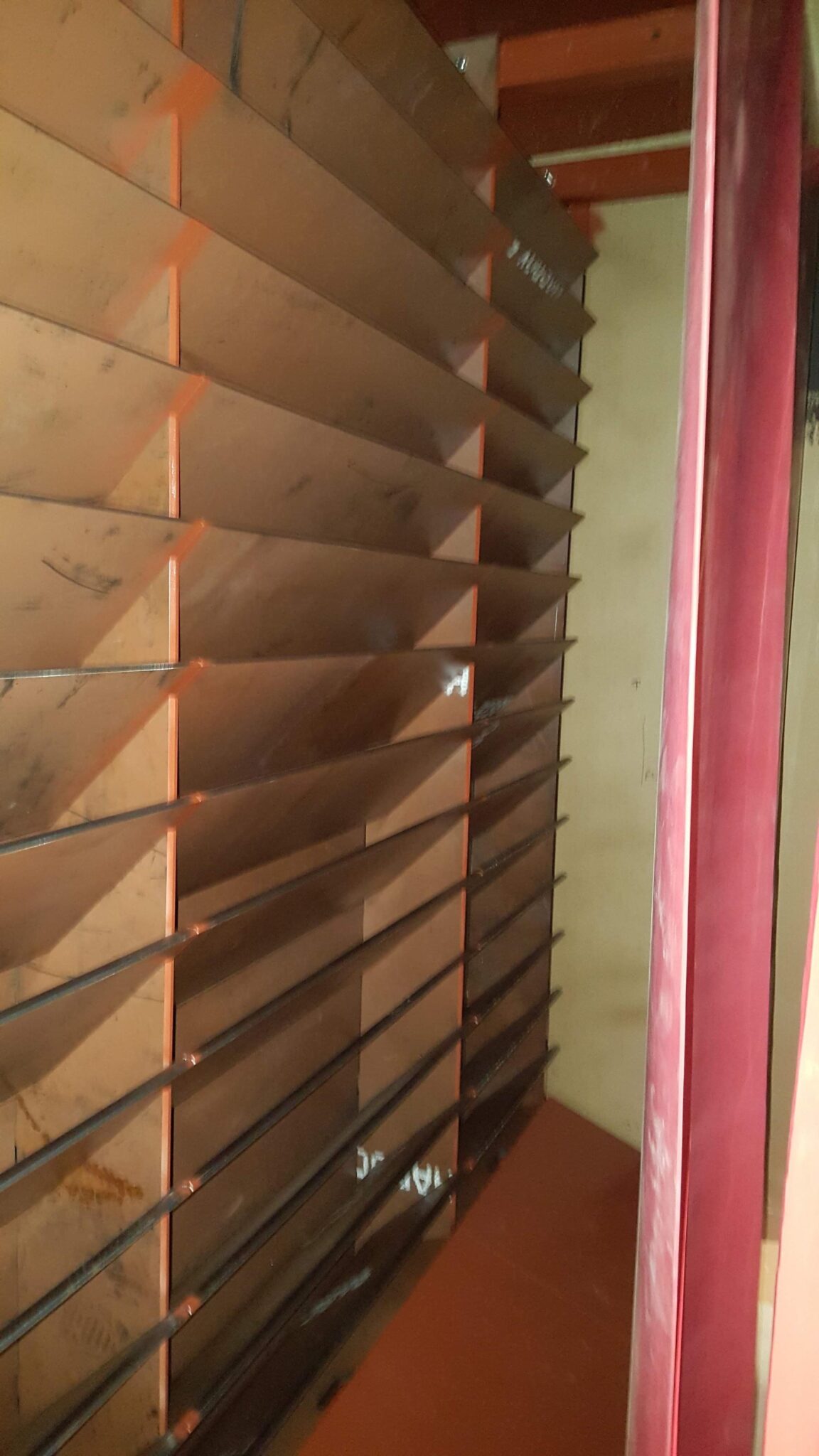

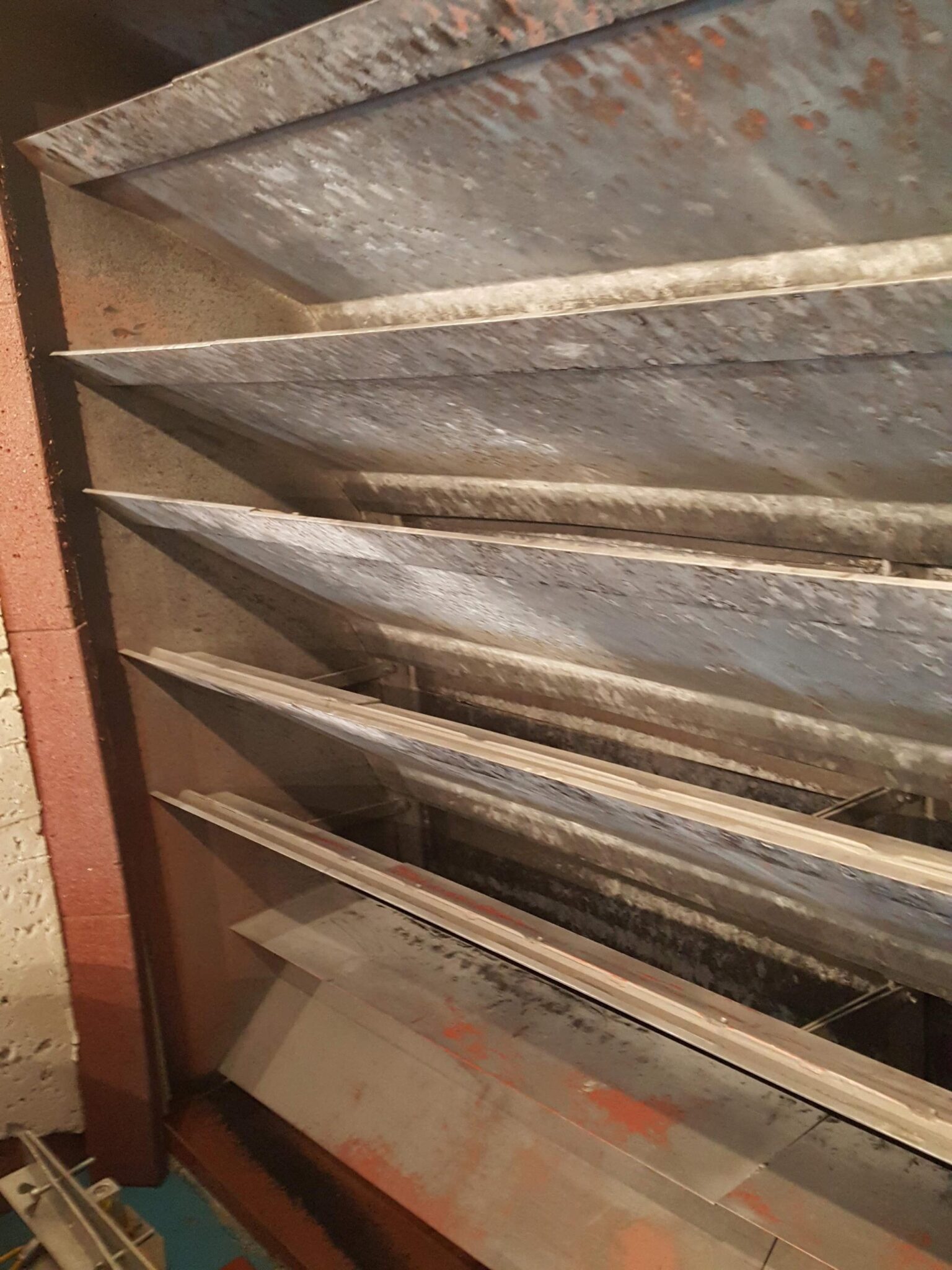

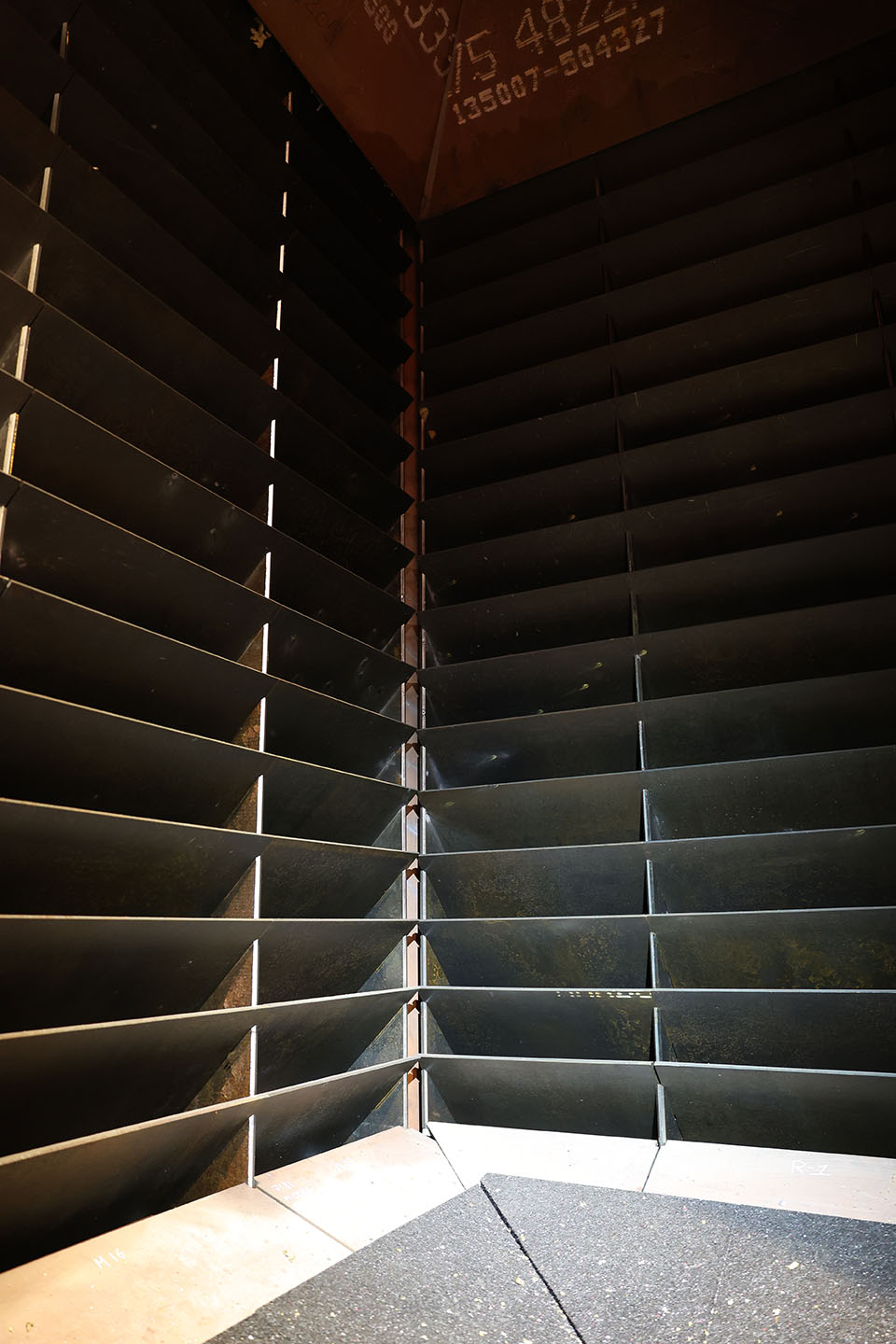

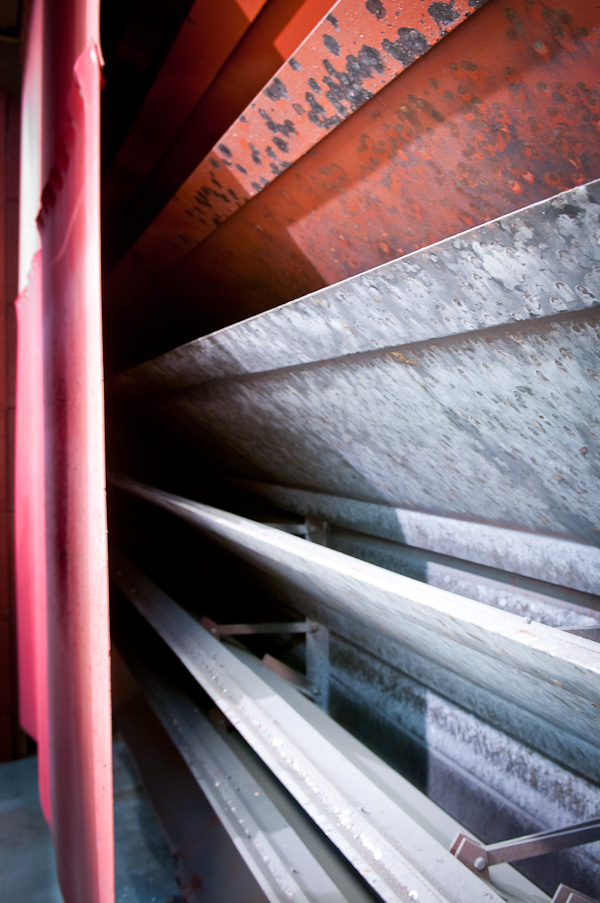

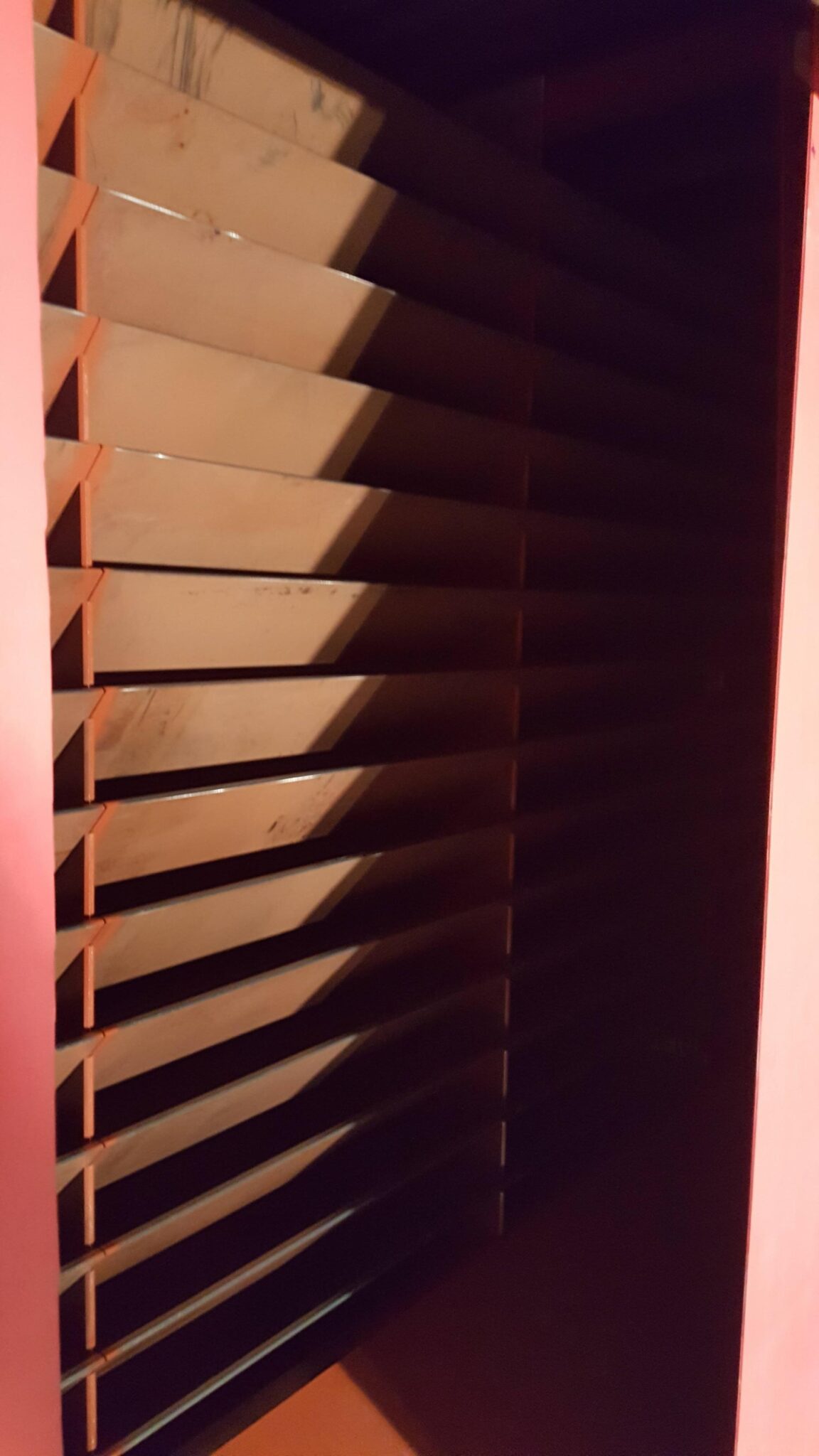

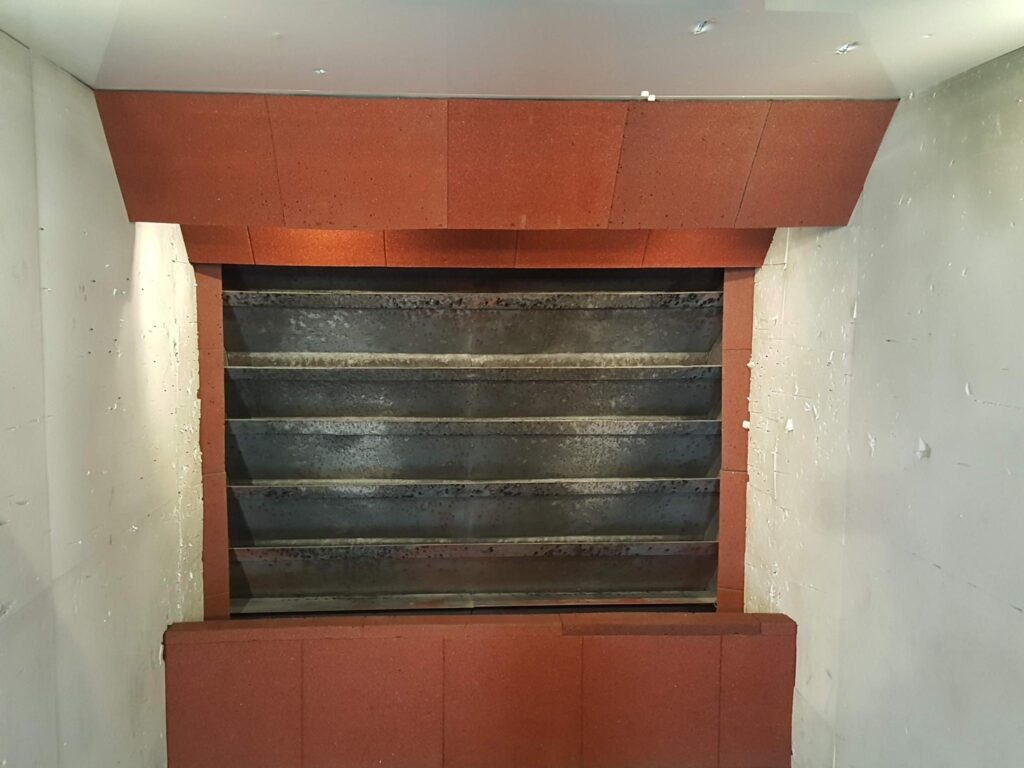

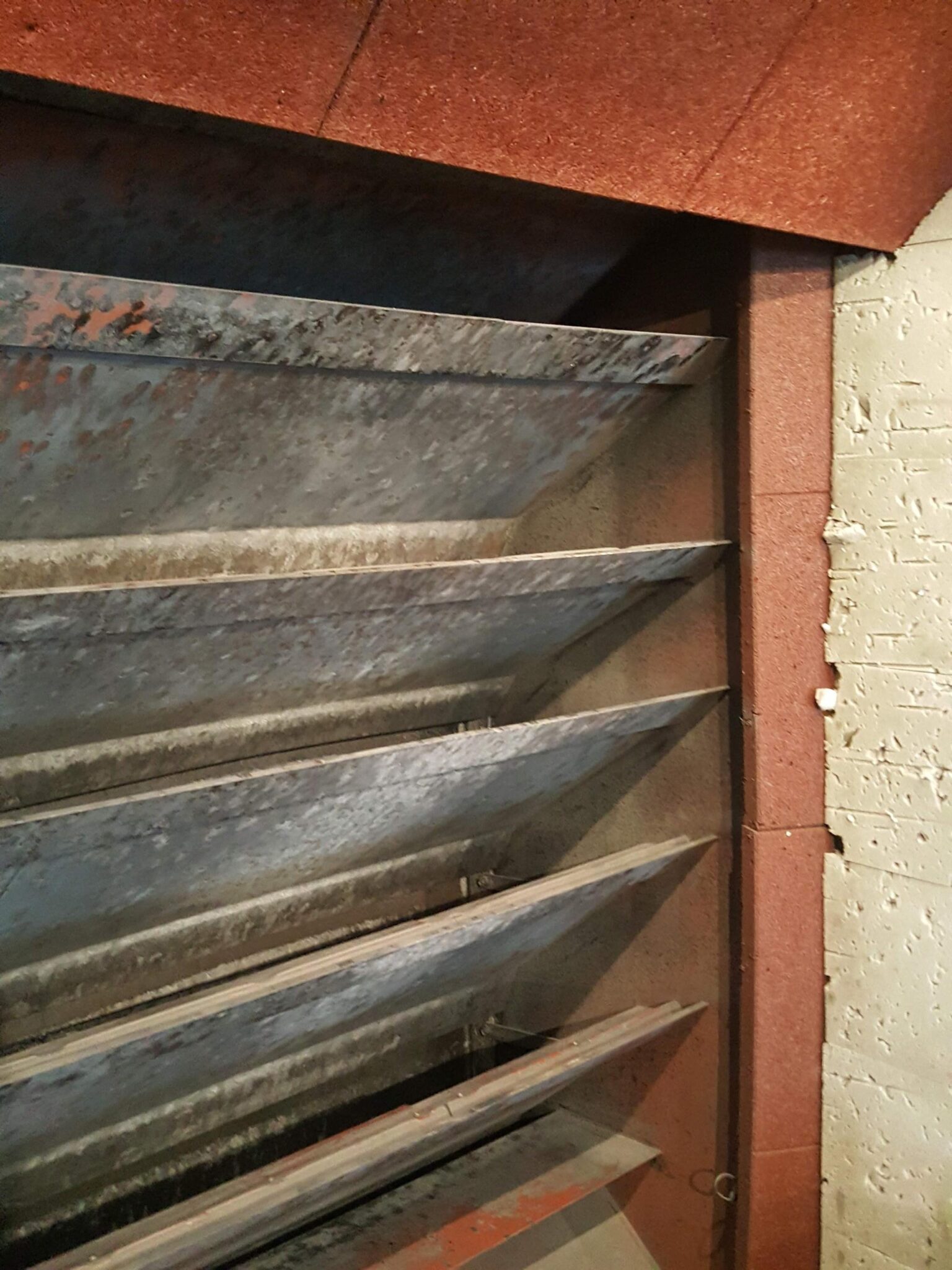

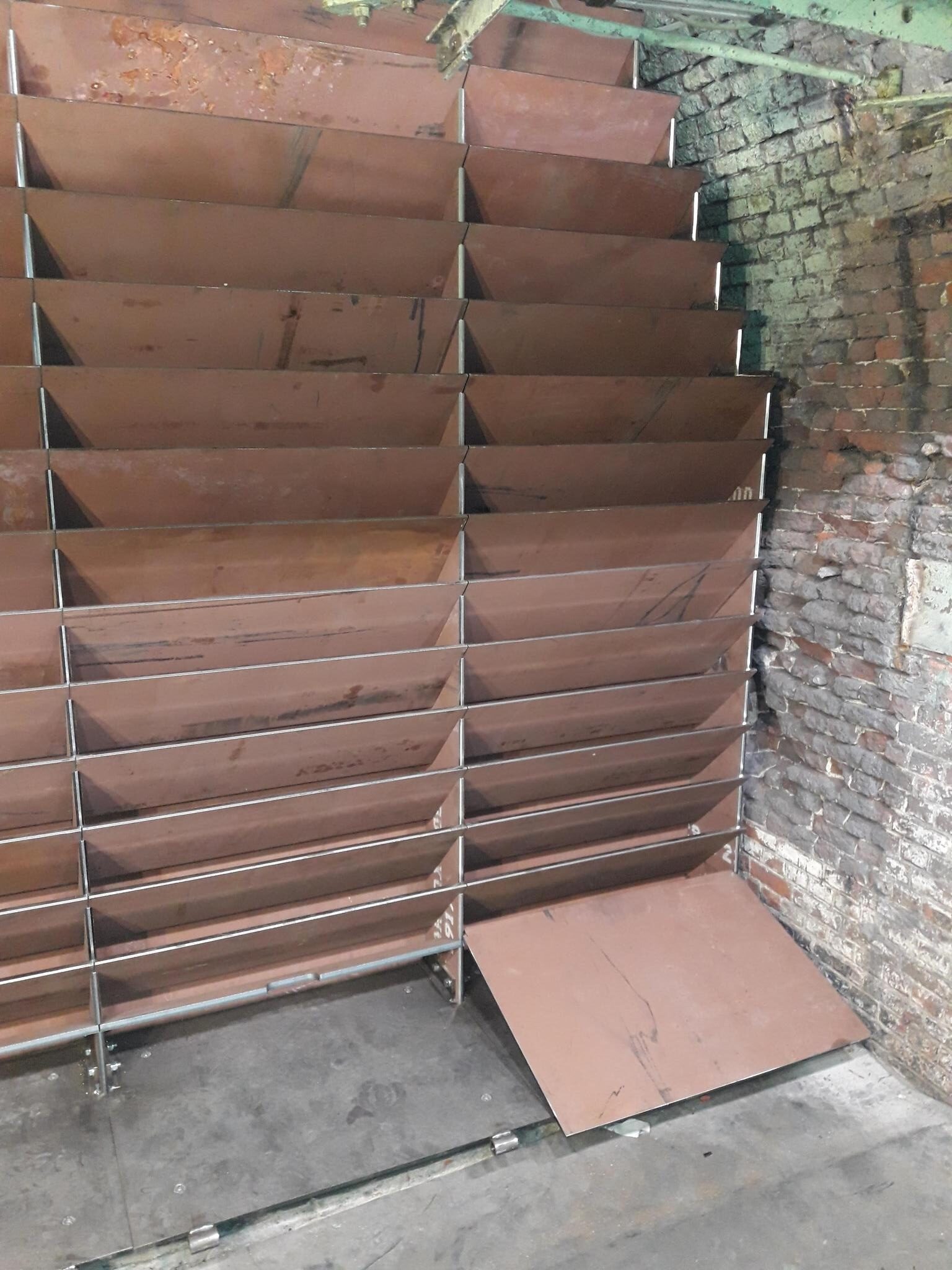

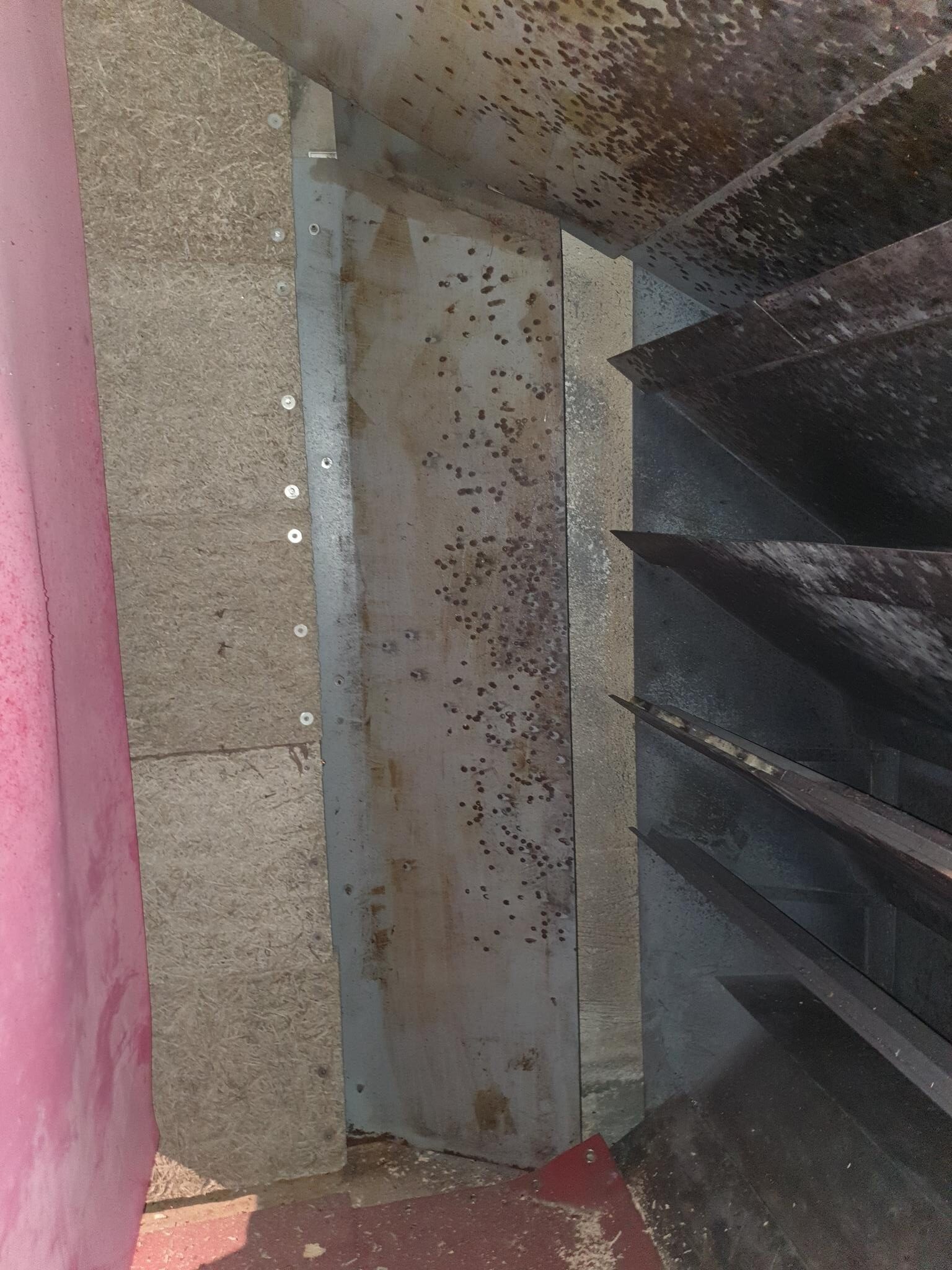

This bullet trap consists of several inclined armoured steel sheets, giving it the shape of a Venetian blind. These sheets divert the trajectory of the projectiles towards the impact sheets located at the back of the bullet trap.

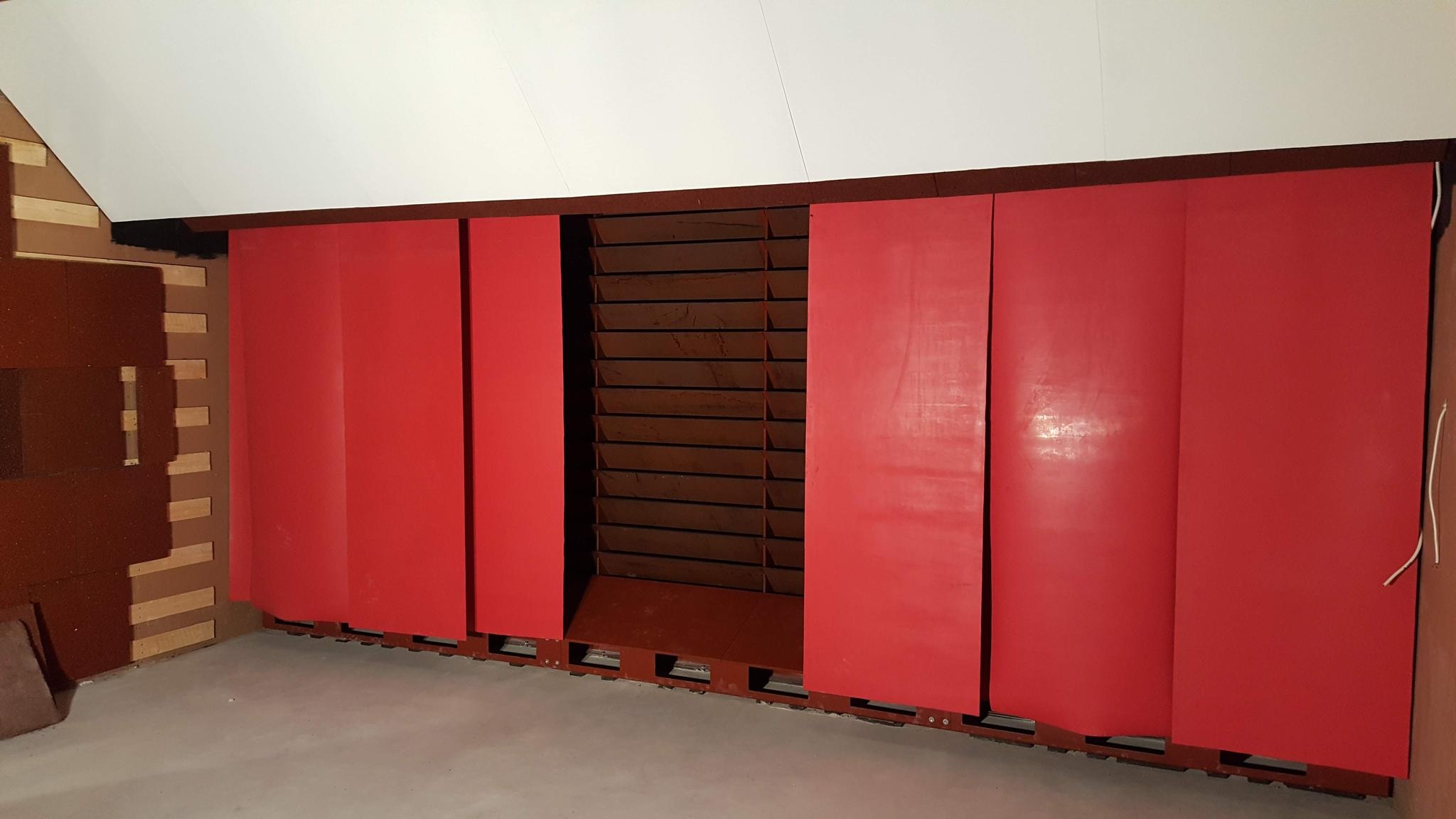

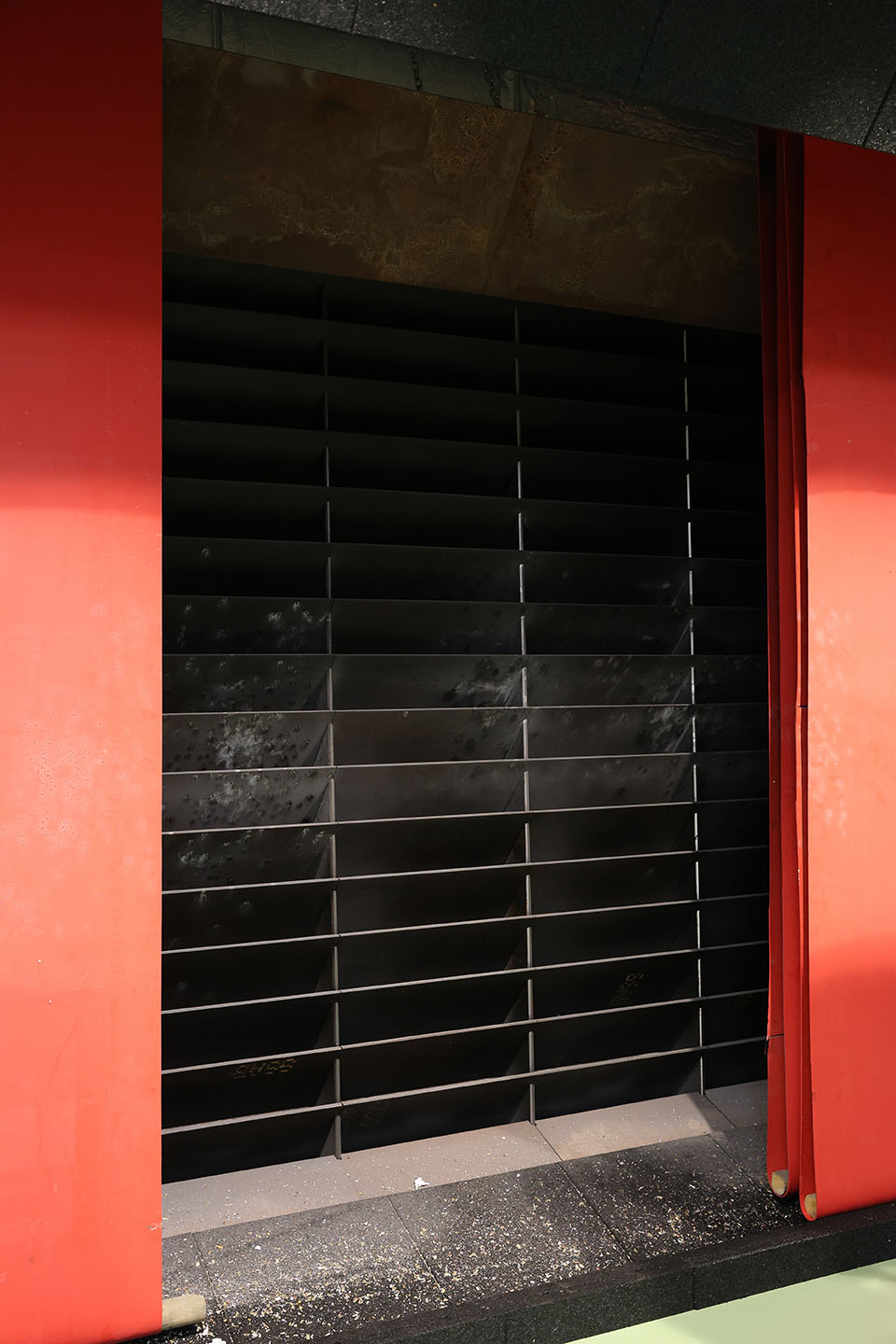

In order to obtain maximum safety, we recommend to hang anti-return curtains in front of the bullet trap. We also recommend to install baffles and</b> ballistic wall panels.

Lightweight model: suitable for handguns only

Composed of a backplate and 5 inclined primary impact plates
Brinell 450 hardness special steel
Depth of approximately 75 cm
Including a deceleration chamber and a recovery bin under the trap
Withstands ammunition up to about 2000 joules (9mm, .357, .38, .45 etc)

Heavy model: suitable for handguns and shoulder weapons

Composed of a backplate and a series of inclined primary impact plates
Brinell 500 hardness special steel
Depth of about 30 cm only
The bullet fragments fall directly into the collection bins (no deceleration chamber)
The impact plates are interchangeable, which allows for extending the lifespan of the bullet trap
Resists ammunition up to about 4000 joules (5.56, 7.62, . 300)
