Armored walls

Ballistic walls for shooting range: security redefined

Made from high-resistance materials, our ballistic sidewalls offer a robust protection adapted to all needs (whether it is a police, military or sports shooting range).

The ballistic walls allow occasional side-fire in the shooting range and are generally installed on both sidewalls of the bullet trap for a minimum distance of 8 meters.

Discover how our ballistic walls respect safety in shooting ranges.

Our ballistic walls

CK Technology offers two models of ballistic walls: standard ballistic panels with tiles and ballistic panels with rubber blocks.

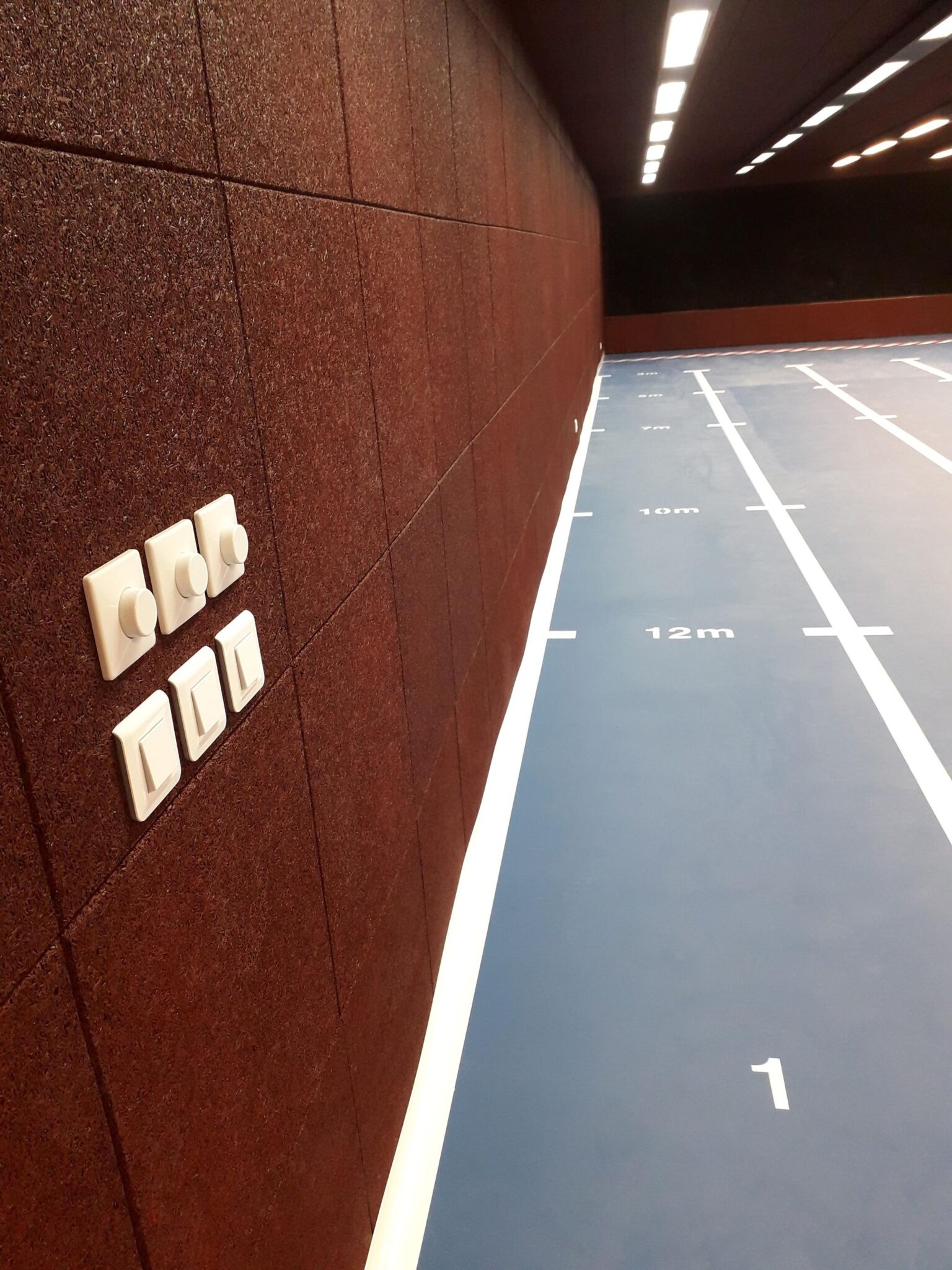

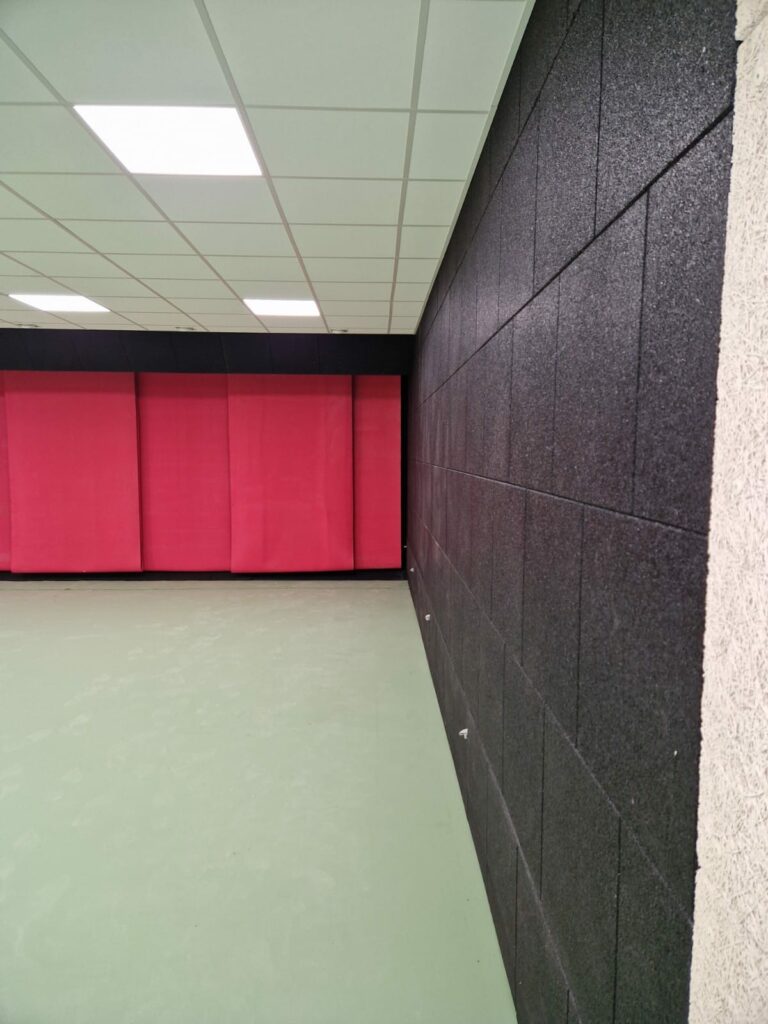

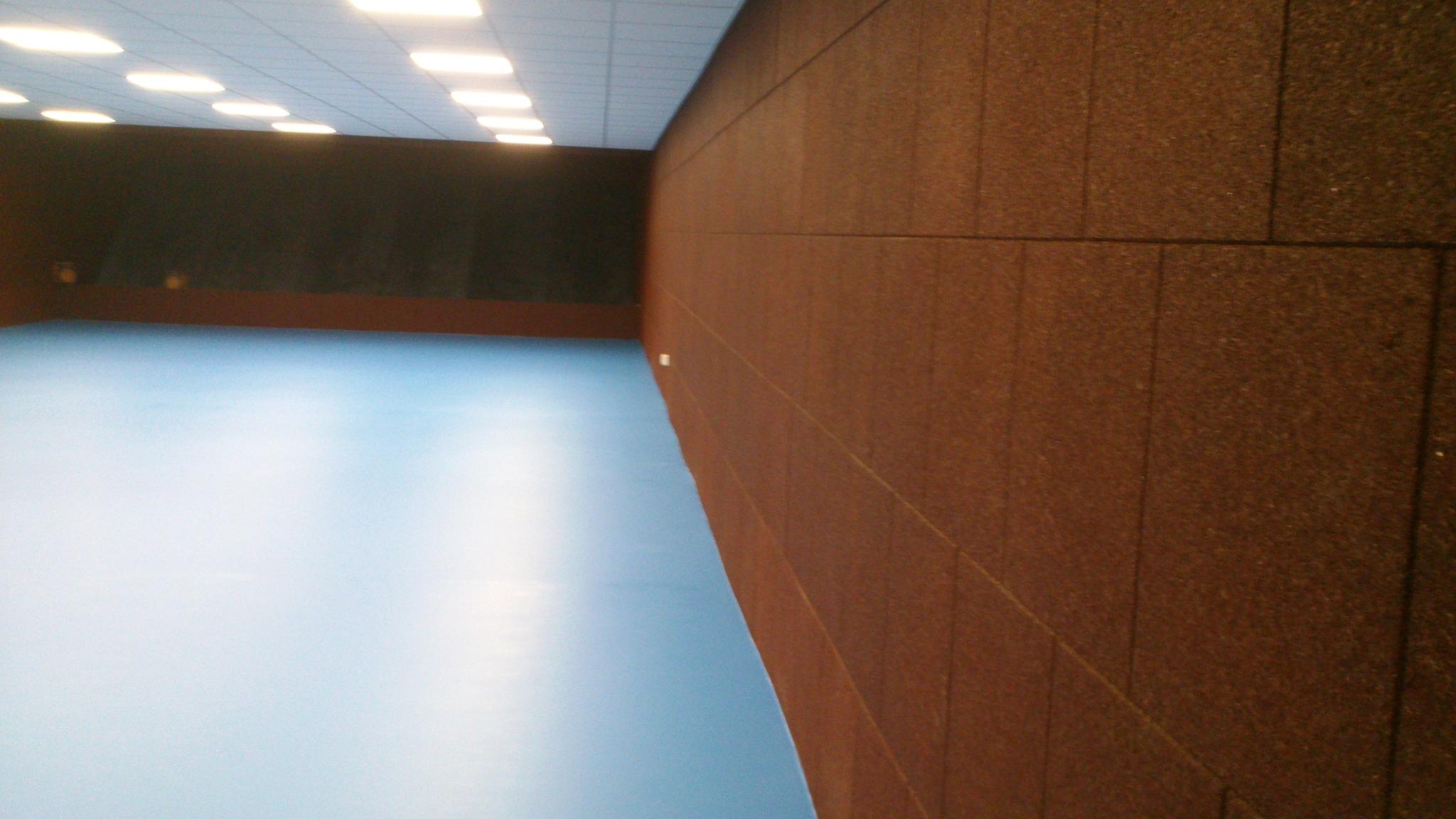

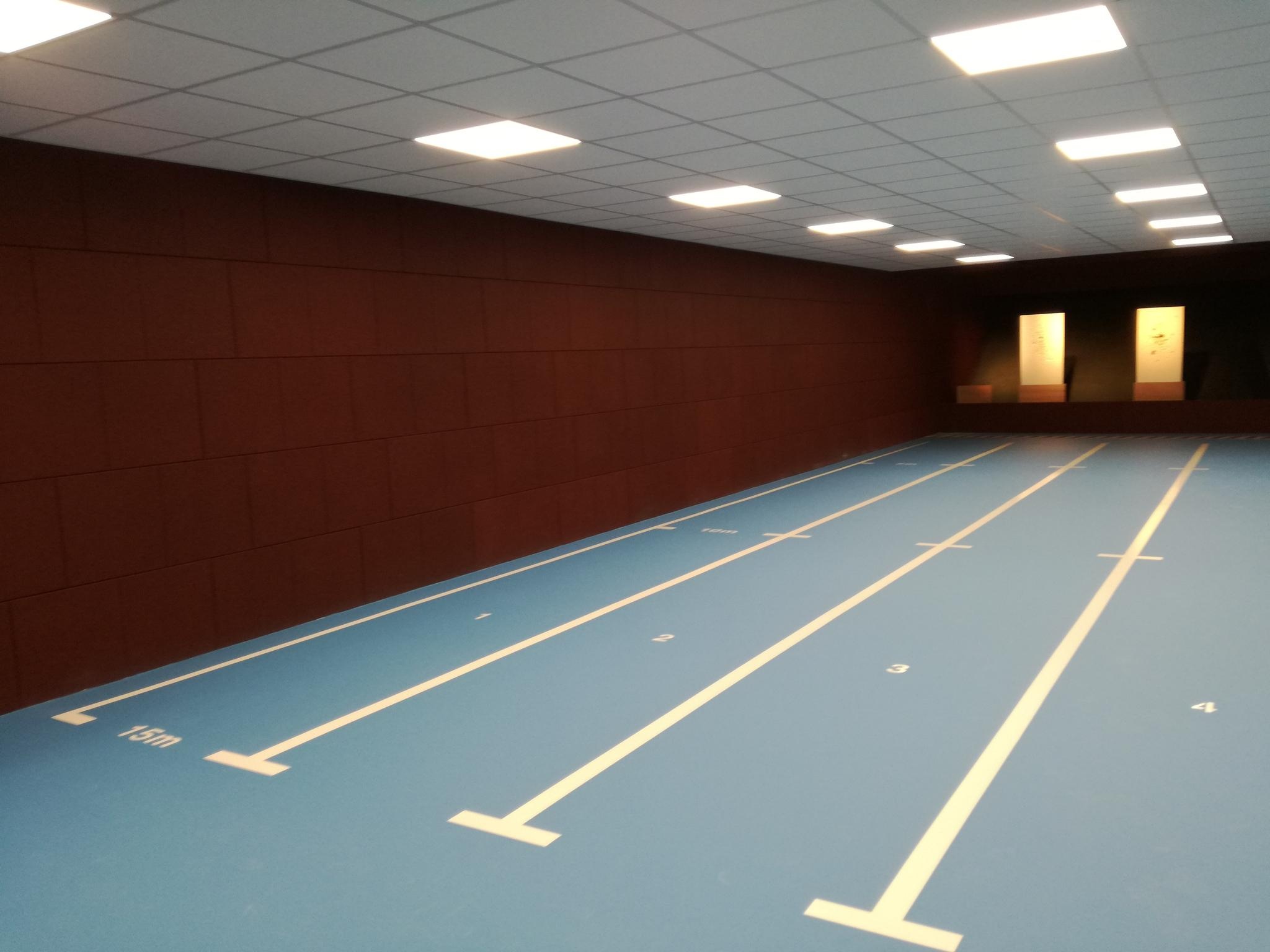

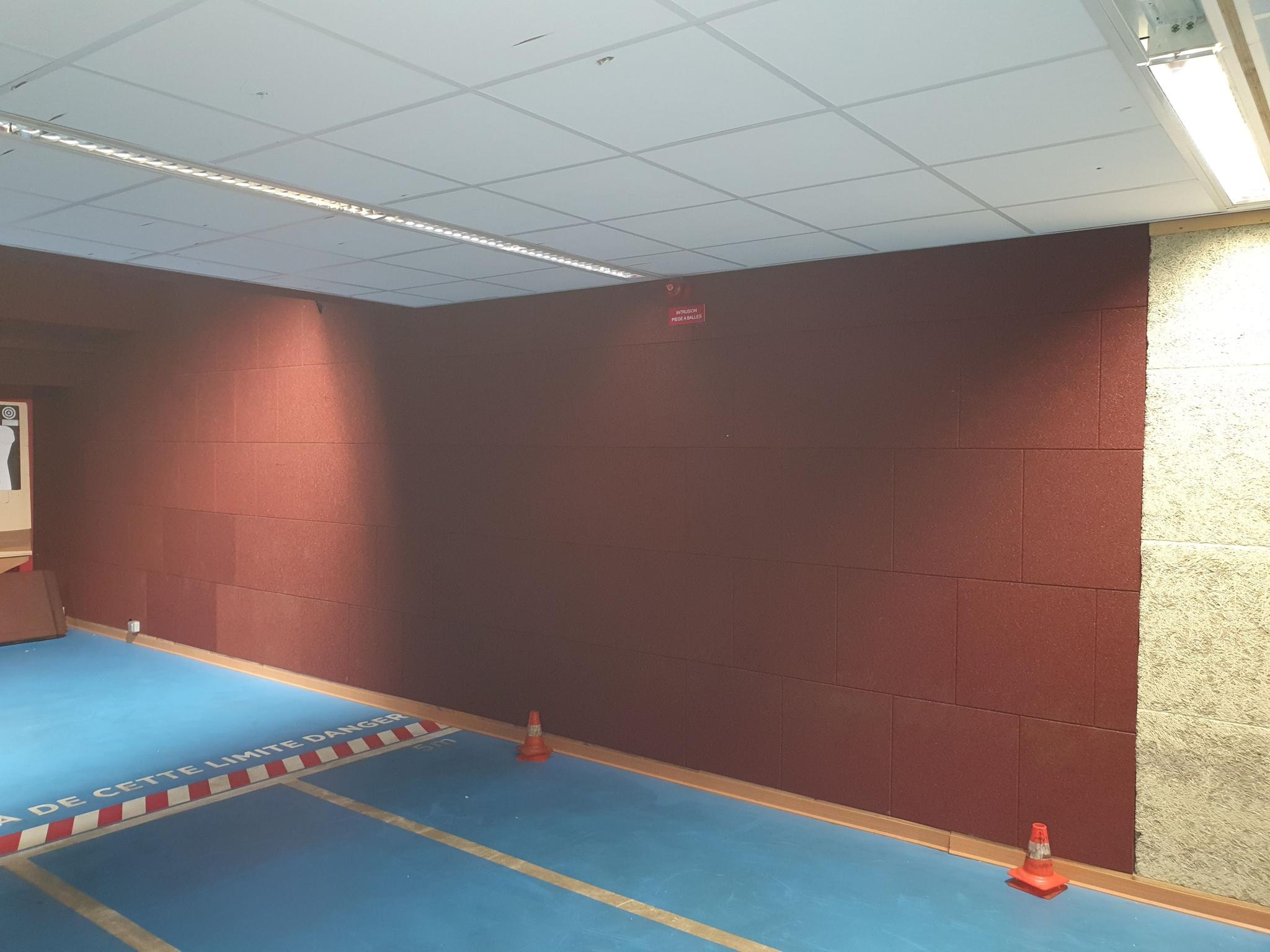

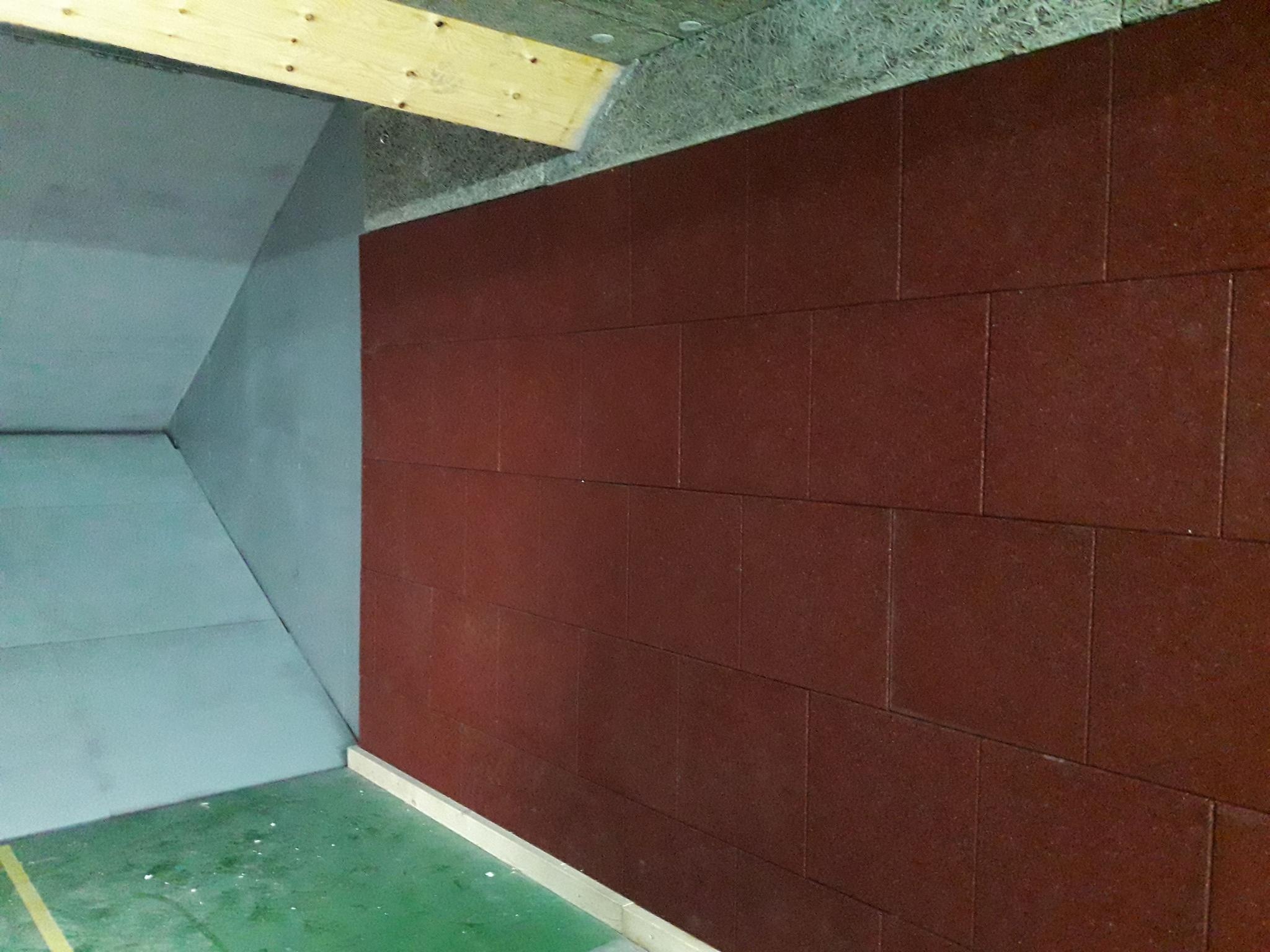

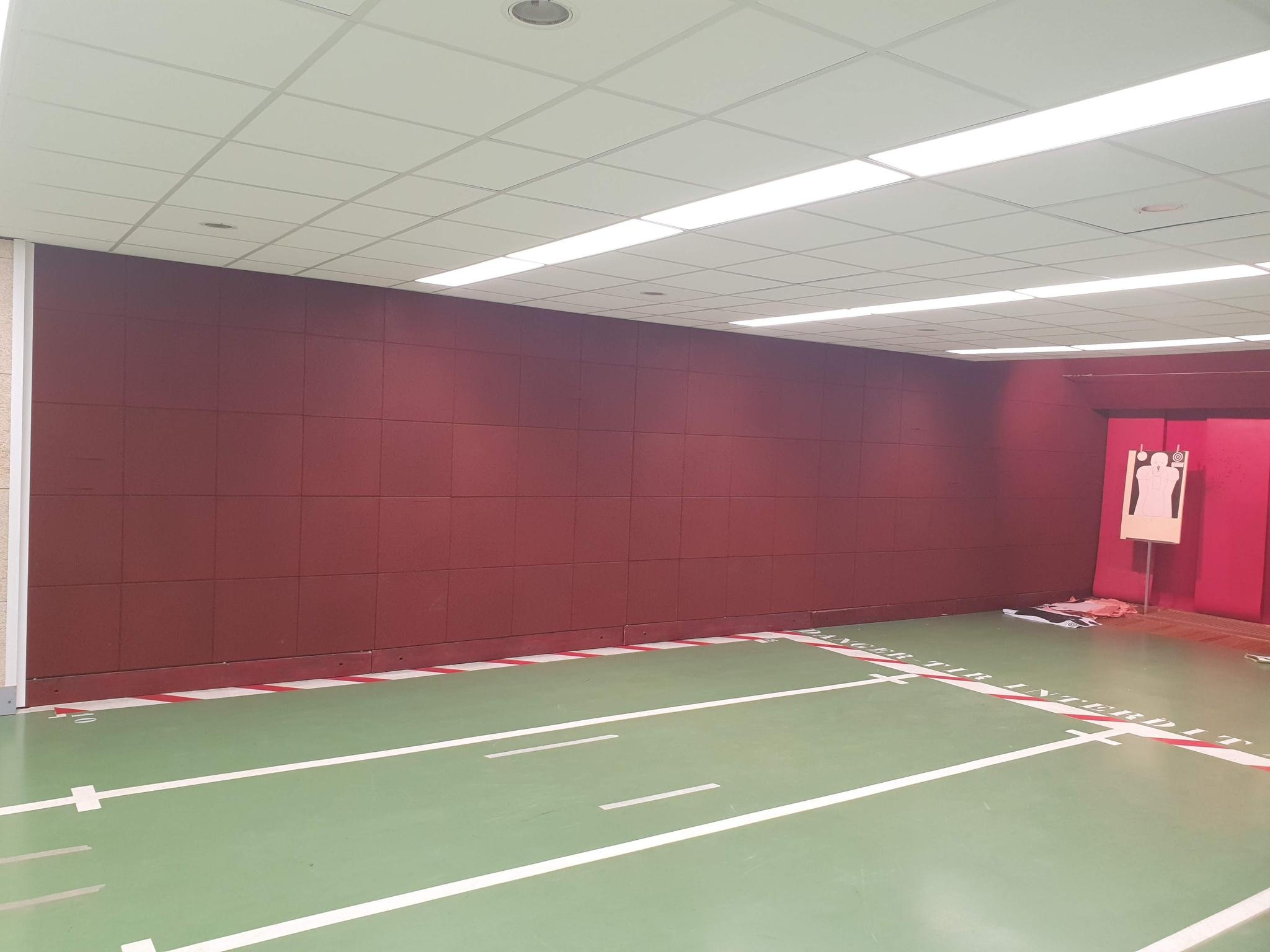

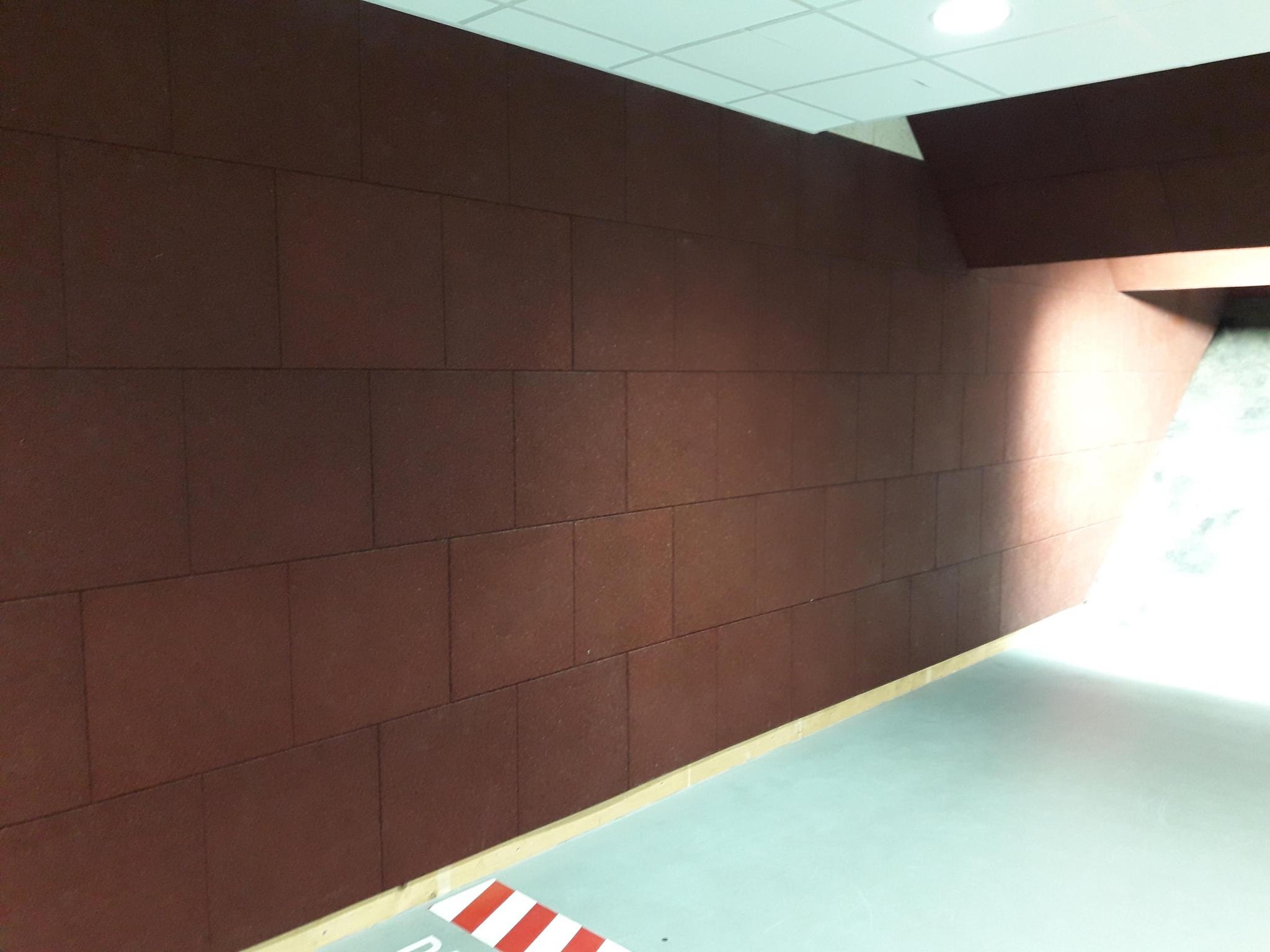

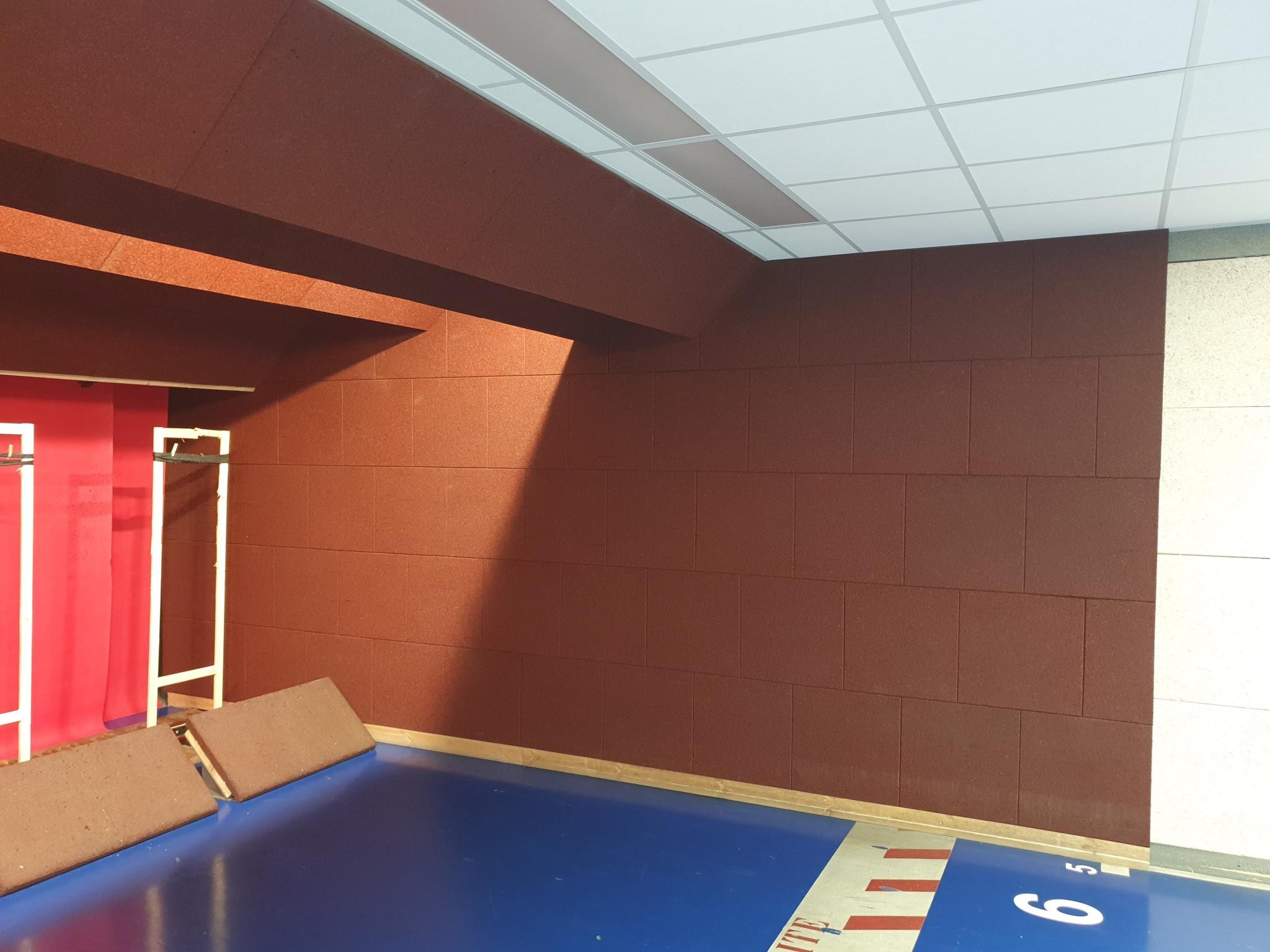

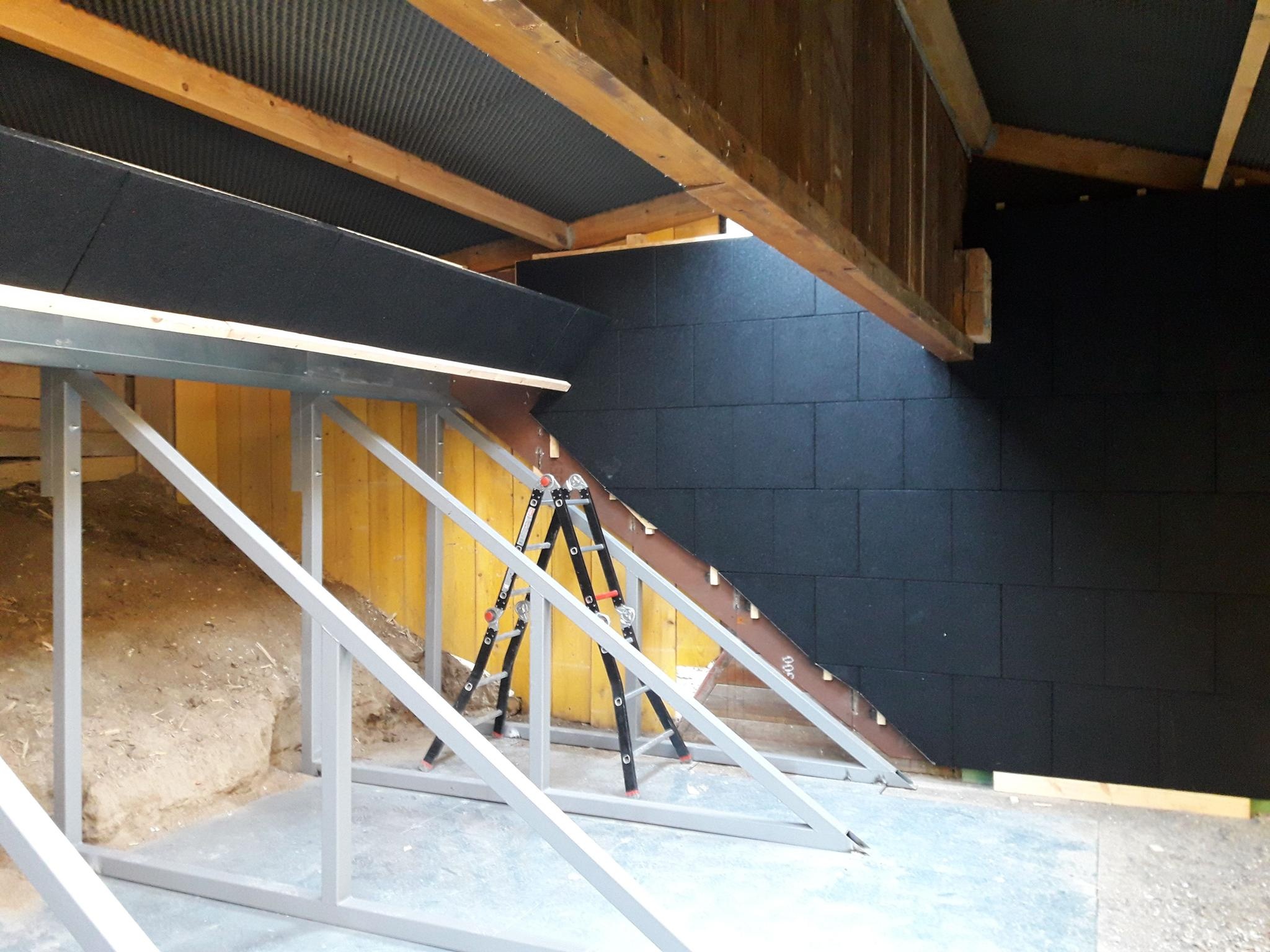

The standard ballistic walls is placed on the sidewalls in front of the bullet trap over a minimum length of 8 meters and cover the wall from floor to ceiling.

They are composed as follows:

Wooden battens – 50mm thickness
High density rock wool – thickness 50mm
Armoured steel sheet in AR 500 (thickness to be determined according to the ammunition used in the range)
Multiplex – thickness 12mm

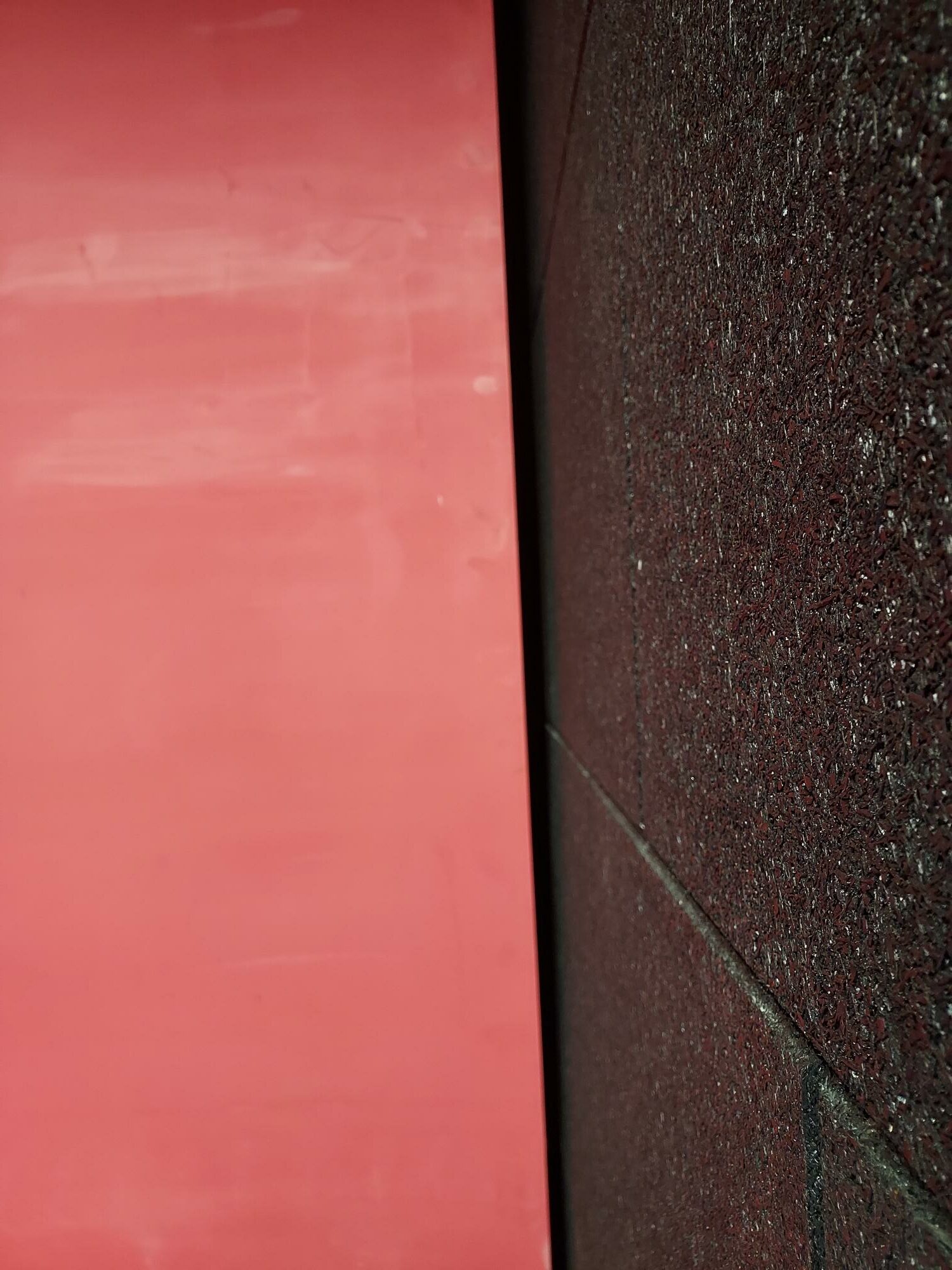

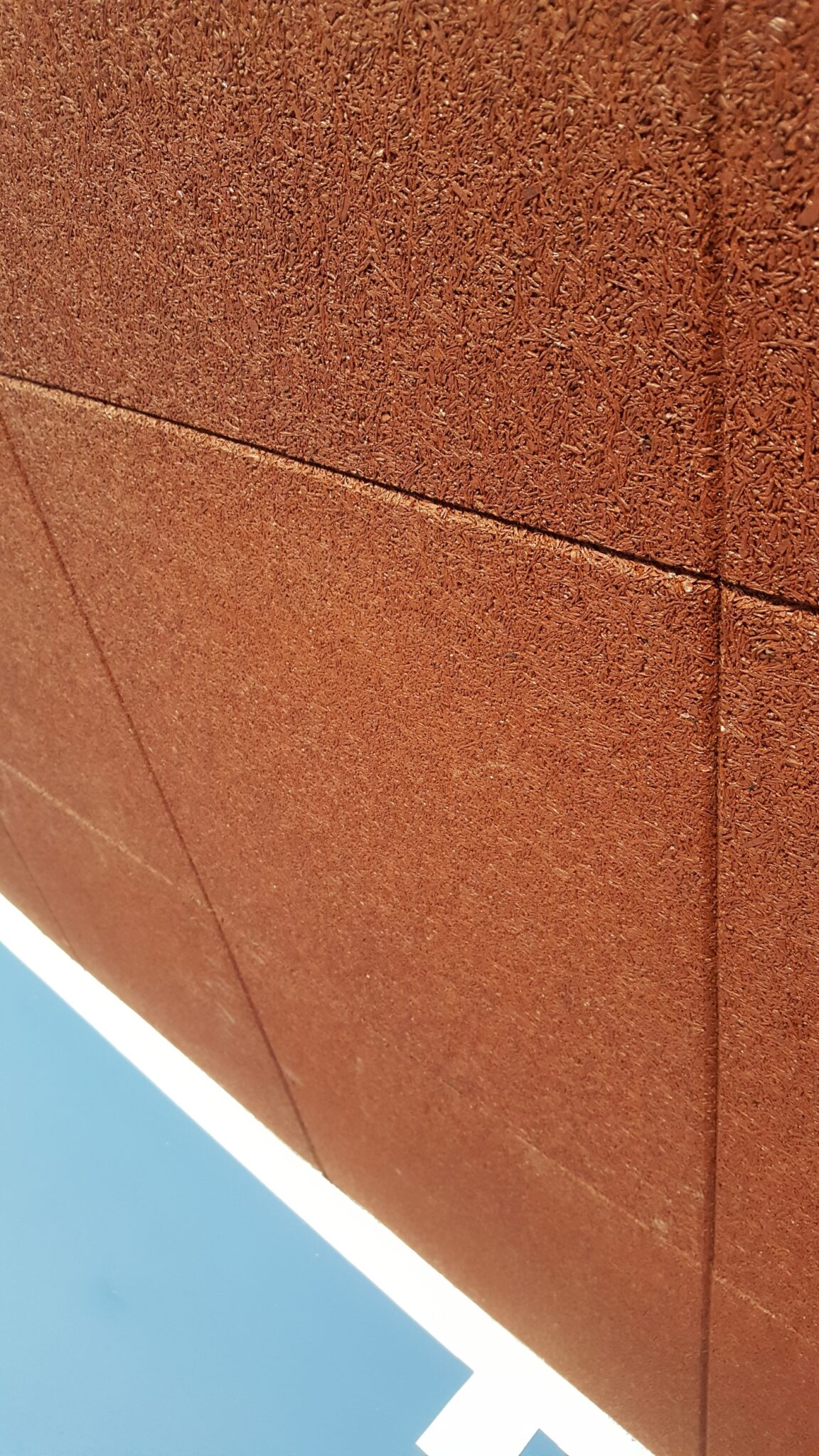

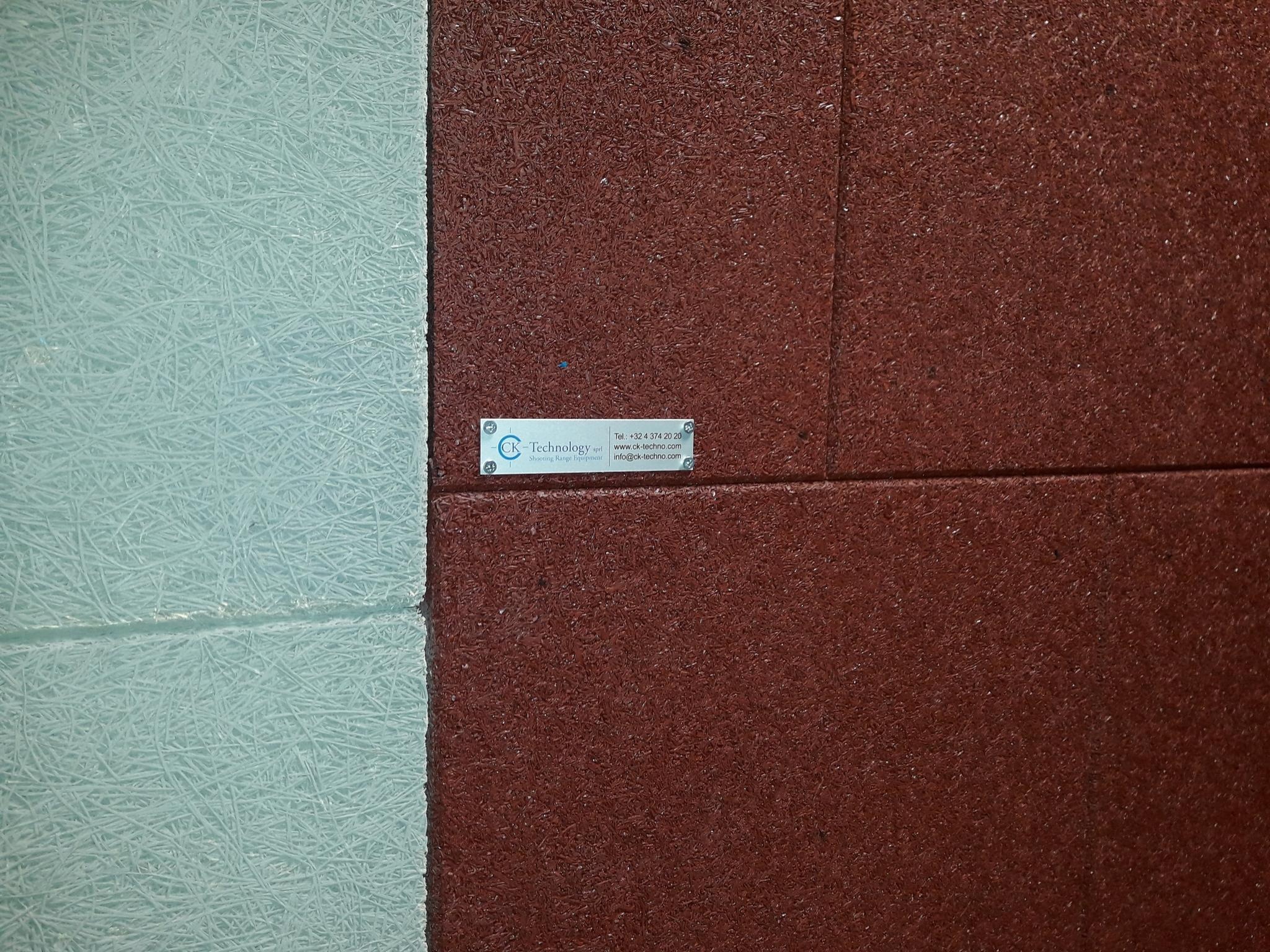

Anti-ricochet tiles

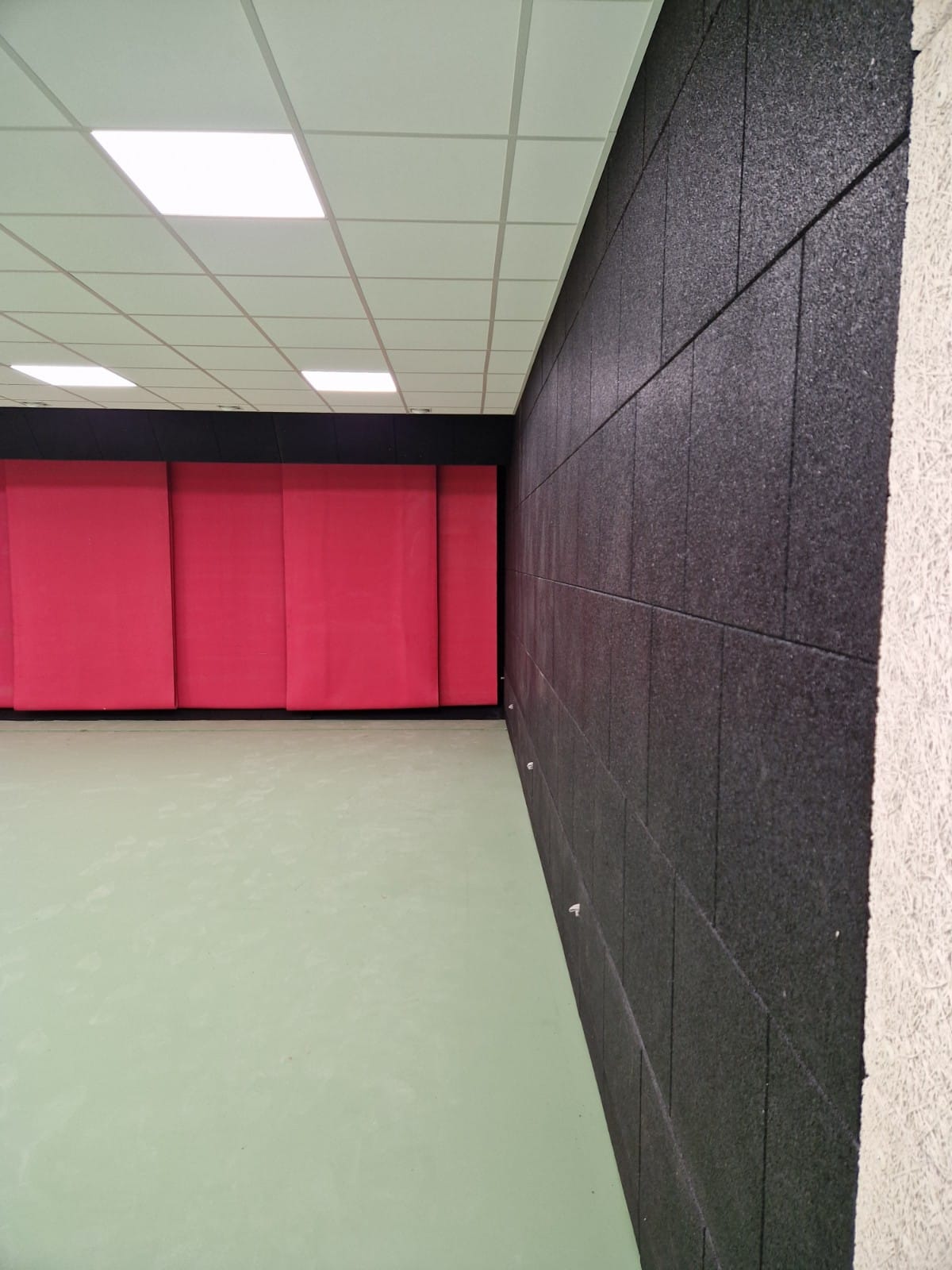

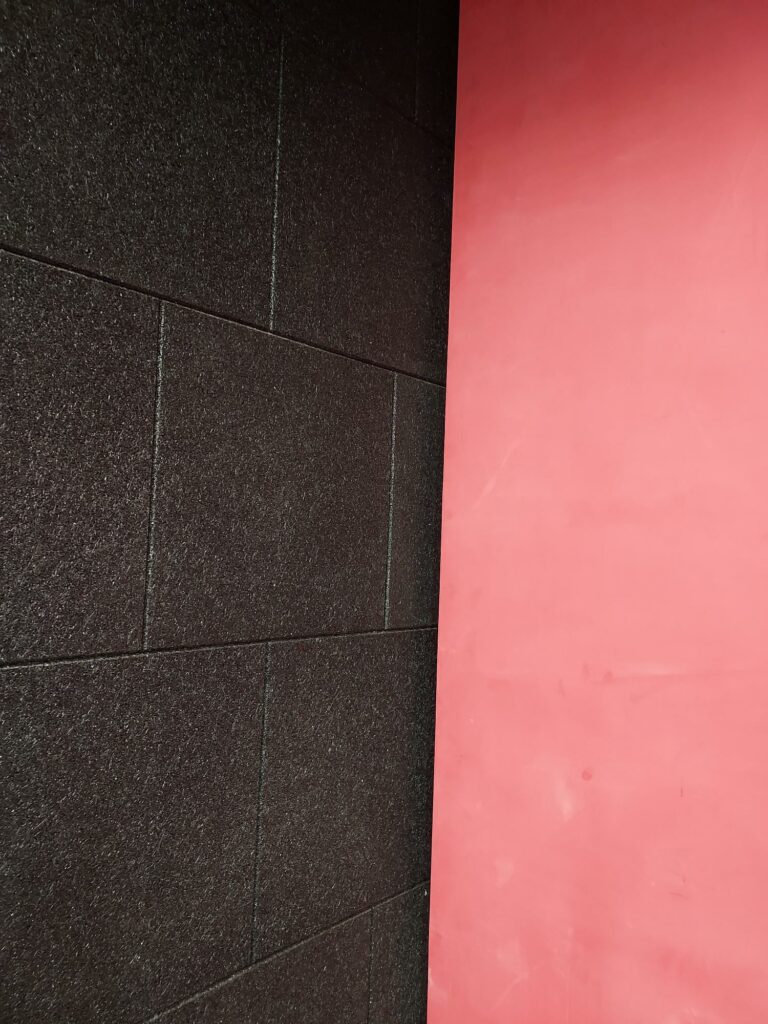

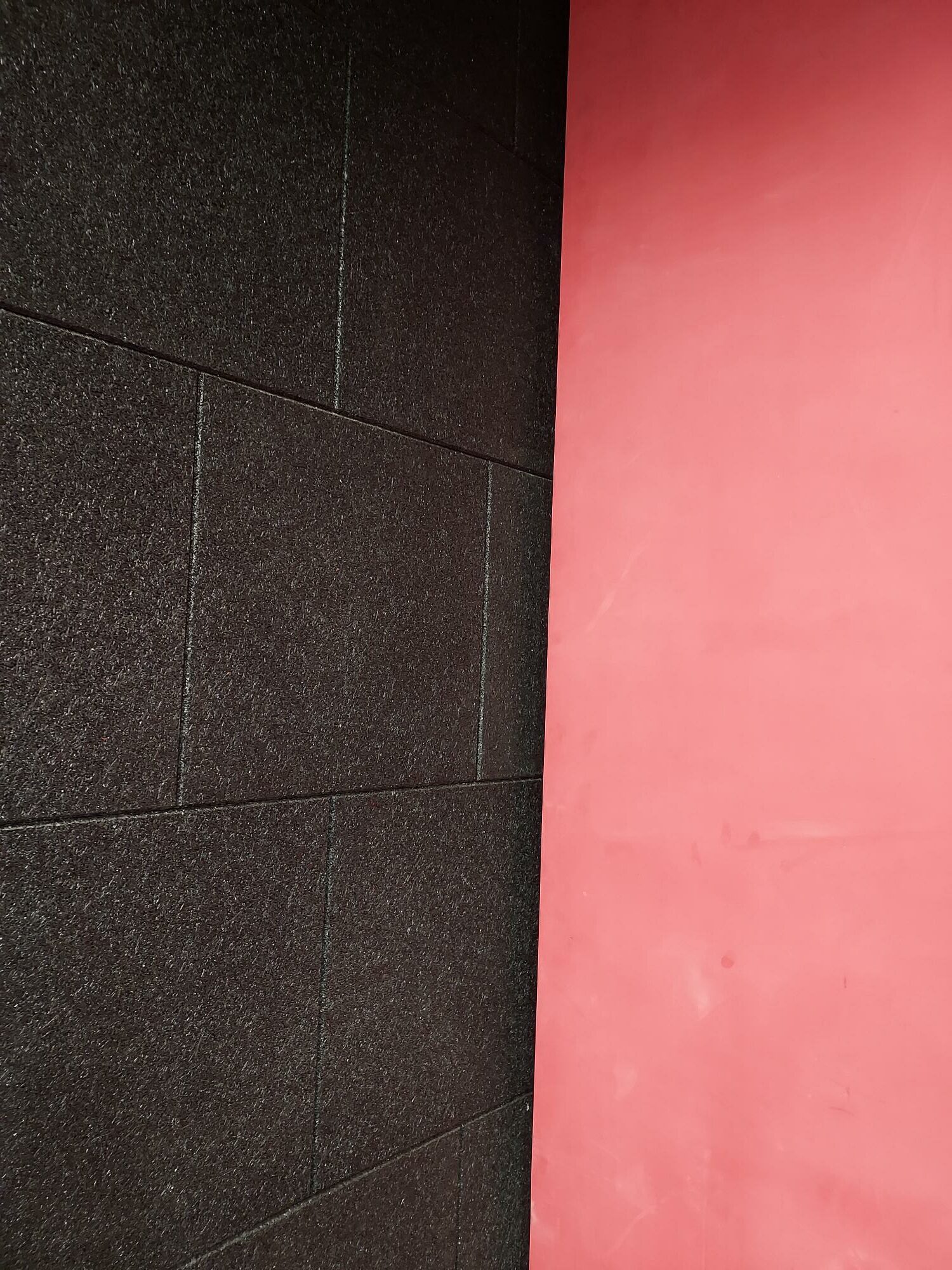

The ballistic walls with rubber blocks were specifically developed to allow firing at 180° on the walls in front of the bullet trap.

They are composed as follows:

Wooden battens – 50mm thickness
High density rock wool – thickness 50mm
Armoured steel sheet in AR 500 (thickness to be determined according to the ammunition used in the range)
Wooden battens – 50mm thickness
Multiplex – thickness 12mm

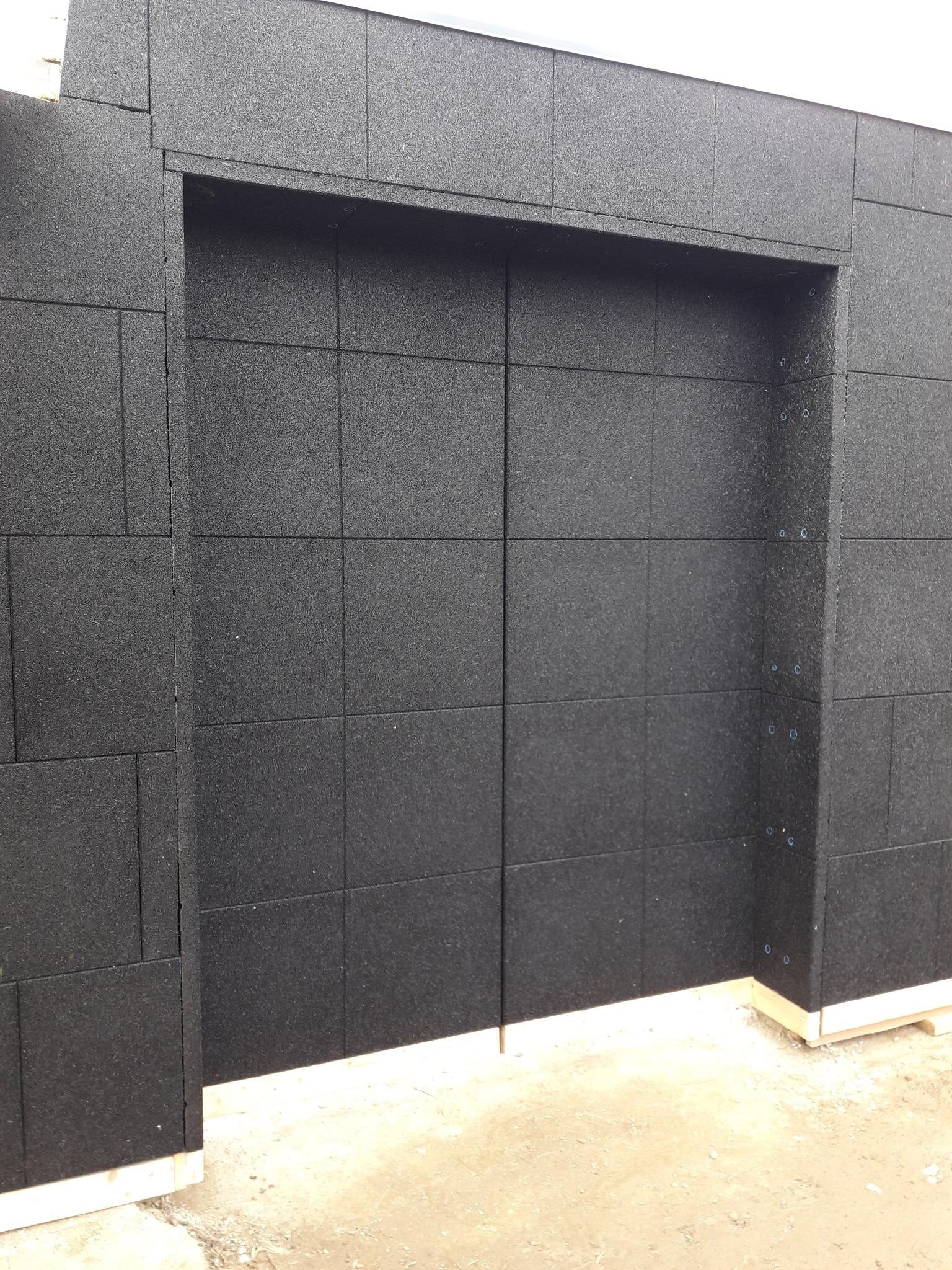

Rubber blocks of 500x300x200mm

(Note: A second thickness of blocks can be placed to increase the strength of this armored wall covering.)

Beware! Standard ballistic walls and ballistic walls with rubber blocks are not substitutes for a bullet trap.
